Cutting

Overview

Our cutting process for thick steel plates is based on the design scheme for a ship or a tank. It uses extreme temperature or a physical method to contract the gas, then uses this compressed gas to cut thick steel plates.

Area (3/5 Plant)

Area (3/5 Plant)
Classification Land Building Cutting A Cutting B Note
Plant No. 3 14,400 3,600 1,090 1,090
Plant No. 5 9,867 6,600 1,401 1,401

Equipment

Equipment
Classification PLASMA CNC FRAME PLANER Note
Plant No. 3 6 1 1
Plant No. 5 10 1 1

Capacity

Capacity
Classification PLASMA Note
Plant No. 3 12,000
Plant No. 5 11,500

Cutting Equipment Type

1.Plasma Cutter

A compressed gas which can reach 20,000-30,000 °C melts the steel plate and blows high-pressure gas to cut it.

2.CNC

Creates an oxidation reaction by heating the steel plate and then using high-pressure air to cut it.

Equipment

  • PlasmaA
  • CNC

Overall Process

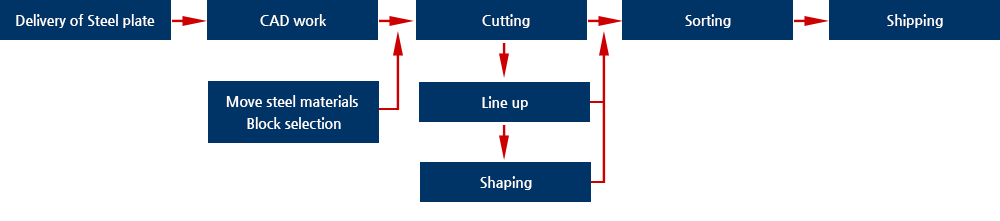

Cutting Process

Cutting Machine

  • PLASMA CUTTING 2 TOUCH
  • CNC CUTTING
  • PLASMA CUTTING 1 TOUCH
  • PLASMA CUTTING ANGLE

Cutting Equipment

  • PLASMA CUTTING 2 TOUCH
  • MAKER KOIKE
    Material carbon steel, alloy steel, nonferrous metal
    CUTTING SPEED 100 - 6,000 mm/min
    MOVING SPEED 24,000 mm/min
    CUTTING THICK. 5 - 50t
    BEVEL CAPA. M : 40° , D : 40°
    LONGITUDINAL DRIVE SYNC' RACK / PINION
    TRANSVERSE DRIVE RACK / PINION TYPE
    CUTTING DIRECTION CLOCKWISE
    CNC HYPERTHERM, FANUC
PLASMA CUTTING MACHINE
  • MAKER KOIKE
    Production capacity 40 TON / 일(주·야)
    Primary use Model cutting
    MATERIAL carbon steel, alloy steel, nonferrous metal
    CUTTING SPEED 100 – 6,000 mm/min
    MOVING SPEED 24,000 mm/min
    CUTTING THICK. 5 - 50 t
    BEVEL CAPA. M : 40° , D : 40°
    LONGITUDINAL DRIVE SYNC` RACK / PINION
    TRANSVERSE DRIVE RACK / PINION TYPE
    CUTTING DIRECTION CLOCKWISE
    CNC HYPERTHERM, FANUC
GAS CUTTING MACHINE - CNC
  • MAKER KOIKE
    Production capacity. 20 sheets/day
    Primary use Model cutting
    MATERIAL carbon steel
    CUTTING SPEED 200 - 500 mm/min
    MOVING SPEED 18,000 mm/min
    CUTTING THICK. 6 - 150 t
    LONGITUDINAL DRIVE SYNC` RACK / PINION
    TRANSVERSE DRIVE RACK / PINION TYPE
    CUTTING DIRECTION CLOCKWISE
    CNC HYPERTHERM
GAS CUTTING MACHINE – FRAME PLANER
  • MAKER KOIKE
    Production capacity

    20 sheets/day

    Primary use Straight cutting
    MATERIAL carbon steel
    CUTTING SPEED 200 - 500 mm/min
    MOVING SPEED 18,000 mm/min
    CUTTING THICK 6 - 150 t
