Overview

A T-Bar maintains strength and functions to reinforce a structure or the hull of a ship. A T-Bar is stronger than angles. It is custom-built but requires only small number of workers because of an automated system.
Strength of Production Line
  • 1Since edge rounding is becoming more important in the construction of ship interiors in order to follow Performance Standard for Protective Coatings (PSPC), we have brought in a chamfering machine and added a 1C-Cutting step before the edge rounding process.
  • 2We can produce low-temperature T-Bars because we have low-temperature steel WPS
  • 3ISO 9001, 14001 & OHSAS 18001 Certifications

Equipment

Equipment
Equipment Edge rounding machine 1C-cutter Tack welding machine Welding machine Straightener
Quantity 1 1 1 3 1

Monthly Capacity

Monthly Capacity
Classification Capacity Note
T-bar 2,000

Product Specifications

  • Product Specifications
    Classification 당사 Note

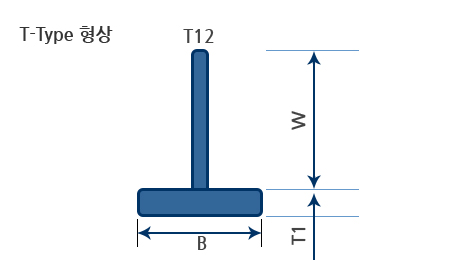

    WEB Height(W) 300mm ~ 950mm
    Thickness(T2) 10mm ~ 25mm
    F/P Width(B) 100mm ~ 300mm
    Thickness(T1) 14mm ~ 45mm
    TL Length 5,000mm ~ 20,000mm(T2)
    Leg length 5.0 ~ 7.5

Equipment

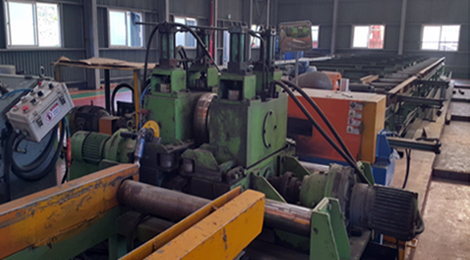

  • 에지 라운딩 장비
  • Equipment
    Name Edge Rounding Machine
    Daily Production Capacity 150 pc/shift
    (Face length 15m)
    Machine speed 25,000mm / min
    Size Width 100 ~ 300mm
    Thickness 14 ~ 45mm
    Length Maximum 20,000mm

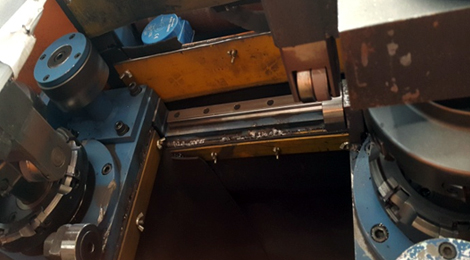

  • 1C-cutter 장비
  • Equipment
    Name 1C-Cutting
    (chamfering machine)
    Daily Production Capacity 70pc's / shift
    (Face length 15m)
    Machine speed 12,000mm / min
    Size Width 125~300mm
    Thickness 10~30mm
    Length Max. 20,000mm

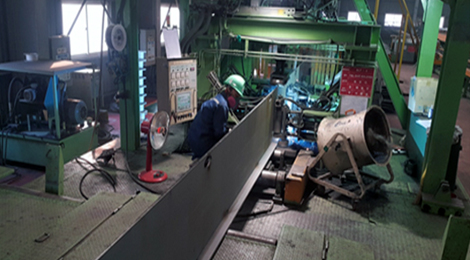

  • BLT 취부기
  • Equipment
    Name Tack Welding Machine
    Daily Production Capacity 120 pc's / 일
    (Face length 15m)
    Specifications Moving speed 25,000mm/min
    Tack speed 500~1,200mm/min
    # of torches 4
    Co, Arc welding

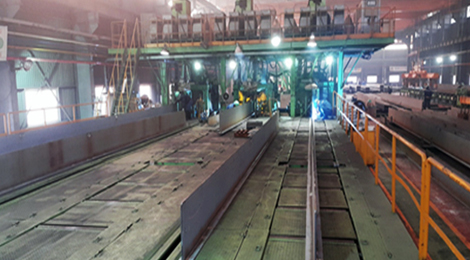

  • BLT 용접기
  • Equipment
    Name BLT Welding Machine (3)
    Daily Production Capacity 120 pc/day(Face length 15m)
    Specifications Moving speed 25,000mm/min
    Tack speed 1,000-2,000mm
    # of torches 4
    Co, Arc welding

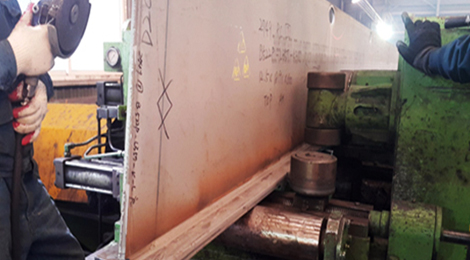

  • BLT  교정기
  • Equipment
    Name Straightening Machine
    Daily Production Capacity 120 pc/day (Face length 15m)
    Machine speed 12,700mm / min
    Specifications Upper Roller Ø280
    Stroke 200mm
    Lower Roller Ø330
    Cylinder Ø280 * Ø200
    Stroke 50mm

Manufacturing Process

  • 1.Edge rounding1.Edge rounding
  • 2.Pit up machine2.Pit up machine
  • 3.Automatic welding3.Automatic welding
  • 4.Press straightening4.Press straightening
  • 5.Selection5.Selection
  • 6.Shipping6.Shipping
